Product Details
Place of Origin: Henan, China
Brand Name: Aobest
Model Number: 1X3 1X4 1X7 1X19 1X37
Payment & Shipping Terms
Minimum Order Quantity: 10 kilometers
Price: $1,650.00/kilometers 10-49999 kilometers
Packaging Details: standard export wooden drum/steel wooden drum or according to clients' requirment
Delivery Time: 8-14 days
Supply Ability: 650000 Meter/Meters per Week
Steel Grade: |
High Carbon Wire Rod |
Standard: |
AiSi |
Type: |
Galvanized |
Application: |
Construction |
Alloy Or Not: |
Non-Alloy |
Special Use: |
Cold Heading Steel |
Grade: |
STEEL |
Wire Gauge: |
1.57mm-4.7mm |
Certificate: |
ISO9001/BV |
Standard: |
IEC |
Port: |
Qingdao/Shanghai Port |
Steel Grade: |
High Carbon Wire Rod |
Standard: |
AiSi |
Type: |
Galvanized |
Application: |
Construction |
Alloy Or Not: |
Non-Alloy |
Special Use: |
Cold Heading Steel |
Grade: |
STEEL |
Wire Gauge: |
1.57mm-4.7mm |
Certificate: |
ISO9001/BV |
Standard: |
IEC |
Port: |
Qingdao/Shanghai Port |

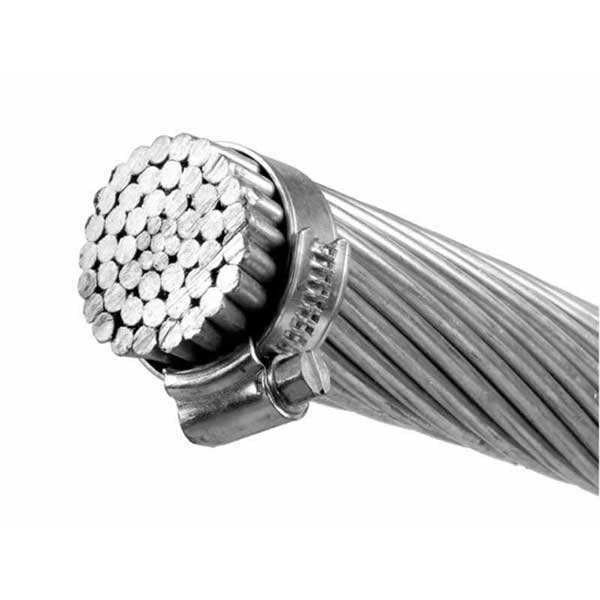

Guy wire/stay wire/galvanized steel wire rope galvanized steel wire strand
Galvanized Steel Stay Wire
Guy and Messanger strands
Galvanized Steel Strands
Galvanized Stay Wire strands is used for transmission line poles, ACSR core,messanger, guy wire, telegraph & telephone poles,etc
Construction: 1x7 / 1x19 / 1x37
ASTM A475 / ASTM B498 / BS 183
Application: For ground / earth wire and bare conductor core ACSR, guy wire and messanger.
No. of Wires: 7 , 19, 37
Diameter: 3/16; 7/32; 1/4; 9/32; 5/16; 3/8; 7/16; 1/2; 9/16; 5/8 Inches;
Constructions:
1 x 3 diameter of wire in strand: 2.64 to 4.19mm
1 x 7 diameter of wire in strand: 1.04 to 5.26mm
1 x 19 diameter of wire in strand: 2.64 to 5.08mm
1 x 37 diameter of wire in strand: 3.63 to 4.55mm
| Number of wires in strand | Stee wire diameter mm | Norminal diameter of the strand mm | The cross section area of strand mm 2 | Nominal tensile streng of Gal.steel wire Mpa | Approximate Weight of stand per Kg/100M | ||||
| 1175 | 1270 | 1370 | 1470 | 1570 | |||||
| Breaking strength of strand KN≥ | |||||||||
| 1×7 | 1.60 | 4.8 | 14.07 | 16.53 | 17.87 | 19.28 | 20.68 | 22.09 | 11.17 |
| 1.80 | 5.4 | 17.81 | 20.93 | 22.62 | 24.40 | 26.18 | 27.96 | 14.14 | |
| 2.00 | 6.0 | 21.99 | 25.84 | 27.93 | 30.13 | 32.32 | 34.52 | 17.46 | |
| 2.20 | 6.6 | 26.60 | 31.26 | 33.78 | 36.44 | 39.10 | 41.76 | 22.77 | |
| 2.30 | 6.9 | 29.08 | 34.17 | 36.93 | 39.84 | 42.75 | 45.66 | 23.09 | |
| 2.60 | 7.8 | 37.17 | 43.60 | 47.20 | 50.92 | 54.63 | 58.30 | 29.51 | |
| 2.90 | 8.7 | 46.24 | 54.33 | 58.72 | 63.36 | 67.97 | 72.60 | 36.71 | |
| 3.00 | 9.0 | 49.48 | 58.14 | 62.84 | 67.79 | 72.74 | 77.68 | 42.38 | |
| 3.20 | 9.6 | 56.30 | 66.15 | 71.50 | 77.13 | 82.76 | 88.39 | 44.70 | |
| 3.50 | 10.5 | 67.35 | 79.14 | 85.85 | 92.27 | 99.00 | 105.74 | 53.48 | |
| 3.80 | 11.4 | 79.39 | 93.28 | 100.82 | 108.76 | 116.70 | 124.64 | 63.04 | |
| Number of wires in strand | Stee wire diameter mm | Norminal diameter of the strand mm | The cross section area of strand mm 2 | Nominal tensile streng of Gal.steel wire Mpa | Approximate Weight of stand per Kg/100M | ||||
| 1175 | 1270 | 1370 | 1470 | 1570 | |||||
| Breaking strength of strand KN≥ | |||||||||
| 1×19 | 1.60 | 8.0 | 38.2 | 44.88 | 48.51 | 52.38 | 56.15 | 59.97 | 30.40 |
| 1.80 | 9.0 | 48.35 | 56.81 | 61.40 | 66.24 | 71.07 | 75.91 | 38.49 | |
| 2.00 | 10.0 | 59.69 | 70.14 | 75.81 | 81.77 | 87.74 | 93.71 | 47.51 | |
| 2.20 | 11.6 | 72.22 | 84.86 | 91.71 | 98.94 | 106.16 | 113.39 | 56.69 | |
| 2.30 | 11.5 | 78.94 | 92.75 | 100.25 | 108.15 | 116.04 | 123.94 | 62.84 | |
| 2.60 | 13.0 | 100.88 | 118.53 | 125.12 | 138.20 | 148.29 | 158.38 | 80.30 | |
| 2.90 | 14.5 | 125.50 | 147.46 | 159.38 | 171.93 | 184.48 | 197.03 | 99.90 | |
| 3.00 | 15.0 | 134.30 | 157.80 | 170.56 | 183.99 | 197.42 | 210.85 | 105.43 | |
| 3.20 | 16.0 | 152.81 | 179.55 | 194.06 | 209.35 | 224.63 | 239.91 | 121.64 | |
We can provide more info than above, if needed. Customer's specification are available upon request.
Please contact me freely; maybe I’ll give you a big surprise. ^.^
