Product Details
Place of Origin: Henan, China
Brand Name: Aobest
Model Number: interlock armor
Payment & Shipping Terms
Minimum Order Quantity: 300 meters
Price: $4.00 - $12.00/meters
Insulation Material: |
Xlpe |
Type: |
LOW VOLTAGE |
Application: |
Industrial |
Conductor Material: |
Copper |
Jacket: |
Aluminum Interlock |
Size: |
1/0 Awg |
Interlock Armor Material: |
Aluminum |
Insulation Material: |
Xlpe |
Type: |
LOW VOLTAGE |
Application: |
Industrial |
Conductor Material: |
Copper |
Jacket: |
Aluminum Interlock |
Size: |
1/0 Awg |
Interlock Armor Material: |
Aluminum |
APPLICATION: AC90 cable is for open and concealed wiring in dry locations only. For use in cable troughs and ventilated flexible cableways in dry locations. The minimum recommended installation temperature is minus 40°C. The maximum conductor temperature is 90°C. Approved for use with ceiling fixtures.

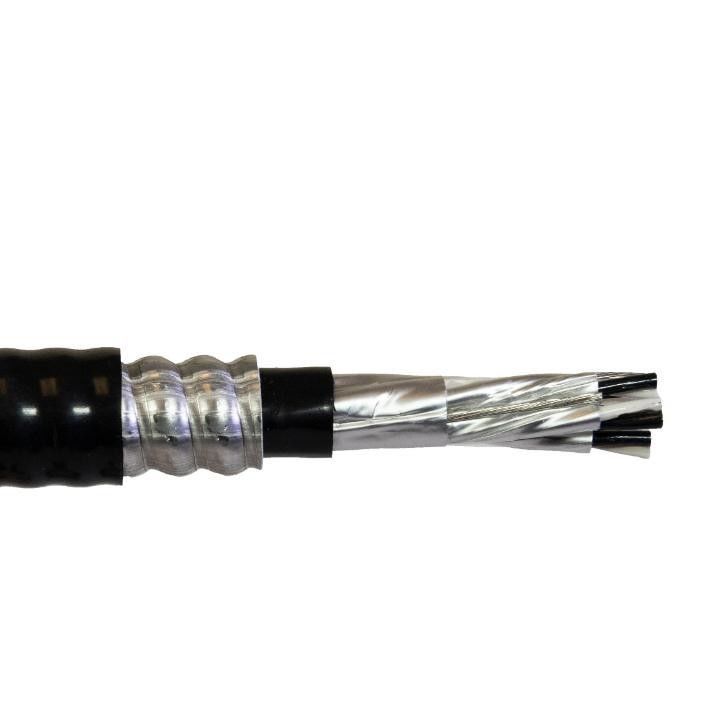

CONSTRUCTION:
Conductors: AA-8000 series aluminum alloy, compact stranded
Insulation: Cross-linked polyethylene (XLPE)
Bonding wire: Bare AA-8000 series aluminum alloy, compact stranded
Assembly: Three insulated conductors and a bare aluminum bonding wire cabled together wrapped with a paper or mylar tape
Armor: Interlocked aluminum armor applied over the cable assembly
COLOR CODE:
· Three Conductor: Black, Red, White
·
SPECIFICATIONS: CSA Spec C22.2 No. 51- Armoured Cables
| Conductor Size | Bonding Wire Size (AWG) | Min Average Insulation (mm) | Ref. O.D. Over Armor (mm) | Approx. Total Weight (kg/km) | Ampacity @ 90°C (amps) | |
| (AWG) | Min # of Strands | |||||
| Three Conductor | ||||||
| 1 | 18 | 4 | 1.27 | 28.8 | 775 | 115 |
| 1/0 | 18 | 4 | 1.27 | 30.9 | 898 | 135 |
| 2/0 | 18 | 4 | 1.27 | 33.1 | 1050 | 150 |
| 3/0 | 18 | 4 | 1.27 | 35.8 | 1238 | 175 |
Packing of AC90 600V
