Product Details
Place of Origin: Henan, China
Brand Name: Aobest
Model Number: Duplex, triplex, quadruplex cable
Payment & Shipping Terms
Minimum Order Quantity: 50 meters
Price: $0.10 - $20.00/meters
Insulation Material: |
Xlpe |
Type: |
LOW VOLTAGE |
Application: |
Overhead |
Conductor Material: |
Aluminum |
Jacket: |
No |
Size: |
16 Mm2 |
Type: |
4x16 |
Insulation Material: |
Xlpe |
Type: |
LOW VOLTAGE |
Application: |
Overhead |
Conductor Material: |
Aluminum |
Jacket: |
No |
Size: |
16 Mm2 |
Type: |
4x16 |
We produce the ABC Twisted cable(duplex, triplex, quadruplex) under IEC and ASTM standard.

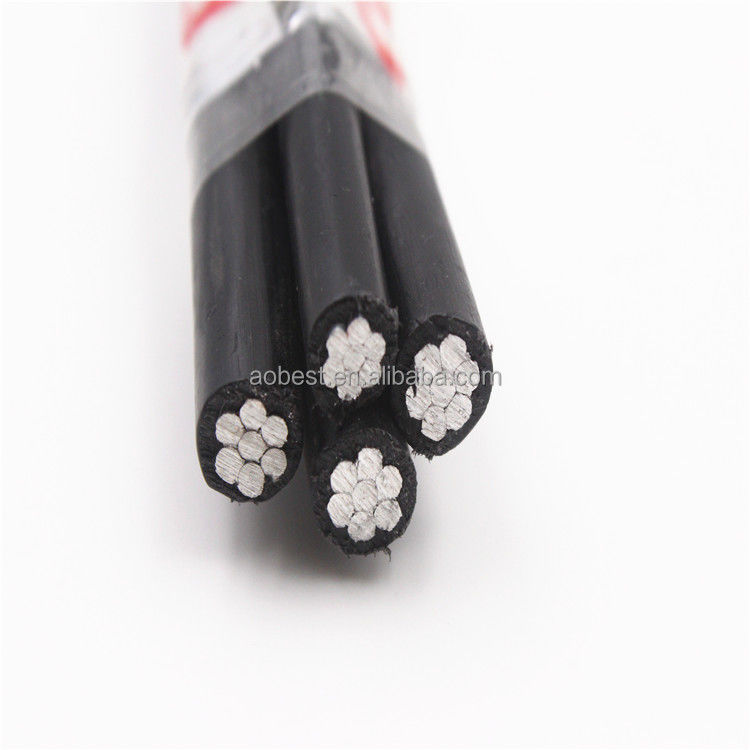

ABC cable 4x16mm2
Service Drop Cable(ABC CABLE) are mainly used for electric power tranmission, rebuiding of urban and forest regions. They can improves safety and reliance of electrified wire netting.
2. Type of Service Drop Cable
Service Drop Cable(ABC CABLE) covers mainly three types:
Duplex Service Drop cable
Triplex Service Drop
Quadruplex Service Drop
| Code Name | Phase Conductor | Bare Neutral Messenger | Weight Per 1000ft (lbs) | Ampacity(amps) | ||||||
| Size AWG | Stranding | Insulation Thickness(mls) | Size AWG | Stranding | Breaking Strength(lbs) | XLPE | Poly | XLPE | Poly | |
| 6201 ALLOY NEUTRAL-MESSENGER | ||||||||||
| Minex | 6 | Solid | 45 | 6 | 7 | 1,110 | 106.6 | 102.9 | 85 | 70 |
| Hippa | 6 | 7 | 45 | 6 | 7 | 1,110 | 113.2 | 105.7 | 85 | 70 |
| Prawn | 4 | Solid | 45 | 4 | 7 | 1,760 | 158.4 | 154.1 | 115 | 90 |
| Barnacles | 4 | 7 | 45 | 4 | 7 | 1,760 | 168.3 | 158.2 | 115 | 90 |
| Shrimp | 2 | 7 | 45 | 2 | 7 | 2,800 | 253.7 | 239.7 | 150 | 120 |
| Gammarus | 1/0 | 7 | 60 | 1/0 | 7 | 4,460 | 411.7 | 386.0 | 205 | 160 |
| Leda | 1/0 | 19 | 60 | 1/0 | 7 | 4,460 | 402.7 | 386.0 | 205 | 160 |
| Dungenese | 2/0 | 7 | 60 | 2/0 | 7 | 5,390 | 506.8 | 476.3 | 235 | 185 |
| Cyclops | 2/0 | 19 | 60 | 2/0 | 7 | 5,390 | 495.3 | 476.3 | 235 | 185 |
| Dlustra | 3/0 | 19 | 60 | 3/0 | 7 | 6,790 | 611.4 | 589.1 | 275 | 215 |
| Lepas | 4/0 | 19 | 60 | 4/0 | 7 | 8,560 | 757.1 | 730.5 | 315 | 245 |
| 6201 ALLOY REDUCED NEUTRAL-MESSENGER | ||||||||||
| Artemia | 4 | Solid | 45 | 6 | 7 | 1,110 | 141.4 | 137.1 | 115 | 90 |
| Crab | 4 | 7 | 45 | 6 | 7 | 1,110 | 151.3 | 141.2 | 115 | 90 |
| Solaster | 2 | 7 | 45 | 4 | 7 | 1,760 | 226.6 | 212.6 | 150 | 120 |
| Sandcrab | 1/0 | 7 | 60 | 2 | 7 | 2,800 | 368.8 | 343.1 | 205 | 160 |
| Echinus | 1/0 | 19 | 60 | 2 | 7 | 2,800 | 358.8 | 343.1 | 205 | 160 |
| Crayfish | 2/0 | 7 | 60 | 1 | 7 | 3,530 | 452.6 | 422.5 | 235 | 185 |
| Sipho | 2/0 | 19 | 60 | 1 | 7 | 3,530 | 441.0 | 422.5 | 235 | 185 |
| Fulgar | 3/0 | 19 | 60 | 1/0 | 7 | 4,460 | 543.4 | 521.1 | 275 | 215 |
| Arca | 4/0 | 19 | 60 | 2/0 | 7 | 5,390 | 671.2 | 644.6 | 315 | 245 |
