Product Details
Place of Origin: China
Brand Name: Hangfan
Certification: ISO
Model Number: 75KVA
Payment & Shipping Terms
Minimum Order Quantity: 1
Packaging Details: wooden case
Delivery Time: 20days
Payment Terms: T/T

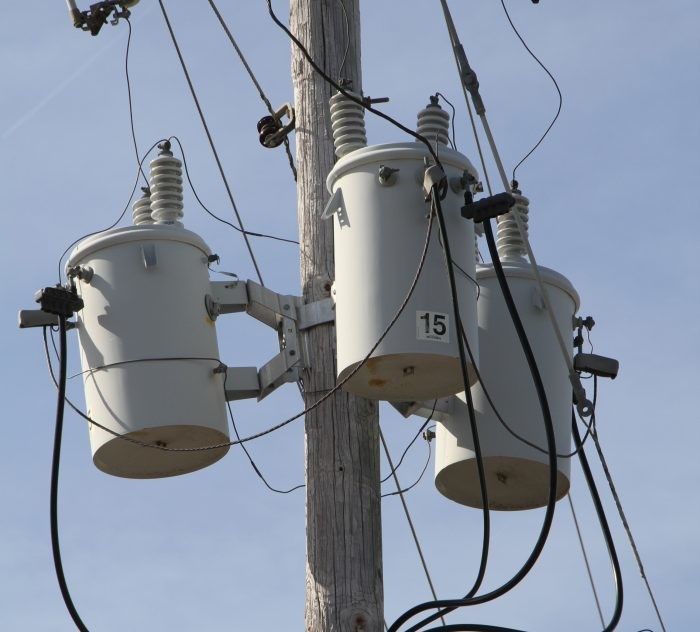

Hangfan's pole type distribution transformer single-phase, oil-filled, pole-mounted distribution transformers are designed for servicing residential overhead distribution loads. They are also suitable for light commercial loads, industrial lighting and diversified power applications. These transformers are designed for the application conditions normally encountered on electric utility power distribution systems.
Lifting lugs
Arrester mounting pads
High-voltage porcelain bushing(s) with eyebolt terminals
Low voltage bushing insulators are available in fiberglass reinforced polyester material or porcelain (both eyebolt and spade terminals)
Low-voltage neutral grounding strap (furnished on 10 – 50 kVA single HV bushing units)
ANSI support lugs (hanger brackets)
Cover has 15 kV dielectric insulation and increased resistance to corrosion. The cover is sloped 15°, preventing water from collecting and thereby reducing the chances of corrosion and leaking.
Self-venting and resealing cover that eliminates the need for an auxiliary pressure-relief device and offers increased safety through higher tank withstand
Wound core with step-lap joints for increased efficiency and lower noise levels.
Core/coil bolts in pads are 180° apart
Embossed low-voltage leads
Oil fill-plug
Cover ground-strap
Tank ground-pad
Laser-etched, anodized, aluminum nameplate with bar-coded serial number
Durable, corrosive-resistant paint finish
welcome contact us for more information!
