Product Details
Place of Origin: Henan, China
Brand Name: Aobest
Model Number: Bare Conductor/Copper Wire
Payment & Shipping Terms
Minimum Order Quantity: 10 kilograms
Price: $1,600.00 - $1,650.00/kilograms
Insulation Material: |
Xlpe |
Type: |
LOW VOLTAGE |
Application: |
Overhead |
Conductor Material: |
Copper |
Jacket: |
PE |
Product Name: |
Copper Conductor Bare |
Conductor: |
Copper Core |
Certificate: |
ISO9001/ISO14001 /OHSAS18001/CCC |
Standard: |
BS IEC ASTM DIN |
Packing: |
Wooden Drum |
Insulation Material: |
Xlpe |
Type: |
LOW VOLTAGE |
Application: |
Overhead |
Conductor Material: |
Copper |
Jacket: |
PE |
Product Name: |
Copper Conductor Bare |
Conductor: |
Copper Core |
Certificate: |
ISO9001/ISO14001 /OHSAS18001/CCC |
Standard: |
BS IEC ASTM DIN |
Packing: |
Wooden Drum |

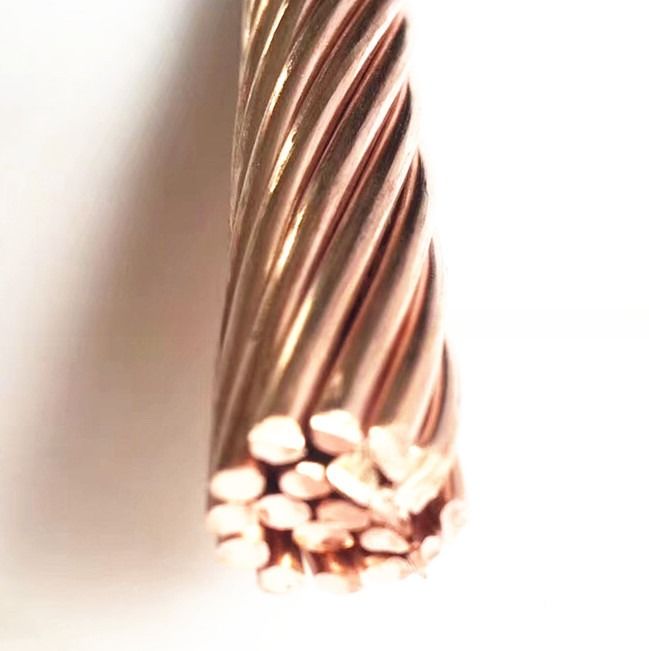

COPPER WIRE BARE CONDUCTOR, Hard Drawn bare copper cable 29mm2:
We can supply the copper wire strand according to different recognized standards, such as IEC61089, BS215, BS EN 50182: 2001, STM B231, CSA C49, DIN480201, JIS C3109, customer special specification also can be satisfied.
Construction:
*Solid or Concentric stranded bare Soft or Annealed Copper.
Installation:
*Soft drawn copper conductor can be installed in air.
Specification: Bare Copper Conductor, Stranded Copper Conductor
Standard: BS128, BS125, DIN48201, ASTM245, AS/NZS5000.1
Package: Wooden Drum Package
Application: Overhead transmission system, overhead traction system, transformer system
Below is part of the specification, pls contact us for more information
| Nominal Sectional Area | Number & Diameter of Wire | Overall Diameter | Maximum Conductor Resistance @ 20°C | Allowable Ampacities in Free Air | Cable Weight (approx) | Standard Packing |
| mm² | No. / mm | mm | Ω / km | A | kg / km | m |
| 10 | 7/1.35 | 4.05 | 1.83 | 90 | 90 | 1,000/R |
| 16 | 7/1.70 | 5.10 | 1.15 | 125 | 143 | 1,000/R |
| 25 | 7/2.14 | 6.42 | 0.727 | 160 | 227 | 1,000/R |
| 35 | 19/1.53 | 7.65 | 0.524 | 200 | 314 | 1,000/R |
| 50 | 19/1.78 | 8.90 | 0.387 | 250 | 428 | 1,000/R |
| 70 | 19/2.14 | 10.70 | 0.268 | 310 | 618 | 1,000/R |
| 95 | 19/2.52 | 12.60 | 0.193 | 380 | 858 | 1,000/R |
| 120 | 37/2.03 | 14.21 | 0.153 | 440 | 1,097 | 1,000/R |
| 150 | 37/2.25 | 15.75 | 0.124 | 510 | 1,334 | 1,000/R |
| 185 | 37/2.52 | 17.64 | 0.0991 | 585 | 1,673 | 1,000/R |
| 240 | 61/2.25 | 20.25 | 0.0754 | 700 | 2,200 | 1,000/R |
| 300 | 61/2.52 | 22.68 | 0.0601 | 800 | 2,760 | 1,000/R |
| 400 | 61/2.85 | 25.65 | 0.0470 | 900 | 3,350 | 1,000/R |
| 500 | 61/3.20 | 28.80 | 0.0366 | 1,110 | 4,451 |
We can offer you the high-quality products in best prices.
Any inquiry or questions, plz feel free to contact me.~
