Product Details
Place of Origin: Henan, China
Brand Name: Aobest
Certification: IEC/BS
Model Number: ASTM B-230 B-232 B-341 B-498 B-500 DIN 48204
Payment & Shipping Terms
Minimum Order Quantity: 1000 meters
Price: $0.84/meters
Packaging Details: export standard wooden drum or as your request
Type: |
Bare |
Application: |
Overhead |
Conductor Material: |
Aluminum |
Conductor Type: |
Stranded |
Insulation Material: |
No Jacket |
Rated Voltage: |
15 Kv |
Product Name: |
High Quality Acsr Conductor Types |
Standard: |
IEC NEMA GB JIS |
Conductor: |
Aluminum |
Name: |
Acsr |
Type: |
Bare |
Application: |
Overhead |
Conductor Material: |
Aluminum |
Conductor Type: |
Stranded |
Insulation Material: |
No Jacket |
Rated Voltage: |
15 Kv |
Product Name: |
High Quality Acsr Conductor Types |
Standard: |
IEC NEMA GB JIS |
Conductor: |
Aluminum |
Name: |
Acsr |
AAC AAAC ACSR AACSR ACAR ACS AL BARE CONDUCTOR

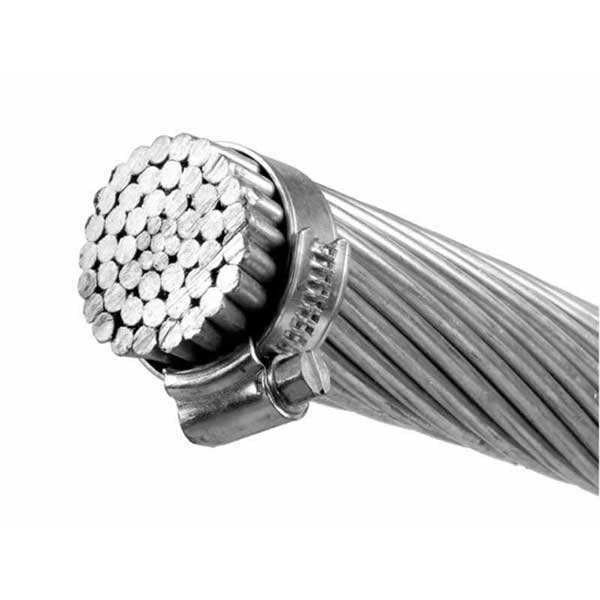

ACSR conductor SCA100mm conductor cable
Aluminium Conductor Steel-Reinforced conductor
Detailed Product Description
ACSR or ACSR cable or ACSR conductor used for Overhead electrical distribution and transmission lines for distributing power
Applications
Used as bare overhead transmission cable and as primary and secondary distribution cable. ACSR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity.
Construction
Aluminum alloy 1350-H-19 wires, concentrically stranded about a steel core. Core wire for ACSR is available with class A, B, or C galvanizing; ""aluminized"" aluminum coated (AZ); or aluminum-clad (AW). Additional corrosion protection is available through the application of grease to the corer or infusion of the complete cable with grease.
Specifications
ACSR bare conductor meets or exceeds the following ASTM specifications:
B-230 Aluminum Wire, 1350-H19 for Electrical Purposes
B-231 Aluminum Conductors, Concentric-Lay-Stranded
B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR)
B-341 Aluminum-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR/AZ)
B-498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR/AZ)
B-500 Zinc Coated and Aluminum Coated Stranded Steel Core for Aluminum Conductors, Steel Reinforced (ACSR)
Notes
· Resistance is calculated using ASTM standard increments of stranding and metal conductivity of 61.2% IACS for EC (1350) and 8% IACS for steel. AC (60Hz) resistance includes current dependent hysteresis loss factor for 1 and 3 layer constructions.
· Current ratings are based on 75oC conductor temperature, 25oC ambient, 2ft/s wind, 96/watts/sq.ft sun, 0.5 coefficients of emissivity and absorption.
| Code Name | Code Name | Code Name | Code Name | High Strength Strandings |
| Turkey | Ibis | Egret | Curlew | Grouse |
| Swan | Lark | Flamingo | Bluejay | Petrel |
| Swanate | Pelican | Gannet | Finch | Minorca |
| Sparrow | Flicker | Stilt | Bunting | Leghorn |
| Sparate | Hawk | Starling | Grackle | Guinea |
| Robin | Hen | Redwing | Bittern | Dotterel |
| Raven | Osprey | Tern | Pheasant | Dorking |
| Quail | Parakeet | Condor | Dipper | Cochin |
| Pigeon | Dove | Cuckoo | Martin | Brahma |
| Penguin | Eagle | Drake | Bobolink |
|
| Waxwing | Peacock | Mallard | Plover |
|
| Partridge | Squab | Ruddy | Nuthatch |
|
| Ostrich | Wood Duck | Canary | Parrot |
|
| Linnet | Teal | Rail | Lapwing |
|
| Oriole | Kingbird | Cardinal | Falcon |
|
| Chickadee | Rook | Ortlan | Chukar |
|
| Brant | Grosbeak |
|
|
|
ACSR BS standard
