Product Details
Place of Origin: Henan, China
Brand Name: Aobest
Model Number: KVVP KVV22P KVV22P3 KVV32P
Payment & Shipping Terms
Minimum Order Quantity: 100 kilometers
Price: $5,000.00/kilometers 100-9999 kilometers
Packaging Details: Wooden drum
Supply Ability: 5000 Kilometer/Kilometers per Month
Shielding: |
Braid Or Foil Or Tape |
Conductor Material: |
Copper |
Jacket: |
PVC |
Insulation Material: |
Pvc Or Xlpe |
Product Name: |
High Quality Screened Instrumentation Armoured Cable |
Color: |
Requirement |
Conductor: |
Copper Core |
Certificate: |
ISO9001 |
Insulation: |
Pvc Or Xlpe |
Sheath: |
Pvc |
Port: |
Qingdao Or Shanghai |
Shielding: |
Braid Or Foil Or Tape |
Conductor Material: |
Copper |
Jacket: |
PVC |
Insulation Material: |
Pvc Or Xlpe |
Product Name: |
High Quality Screened Instrumentation Armoured Cable |
Color: |
Requirement |
Conductor: |
Copper Core |
Certificate: |
ISO9001 |
Insulation: |
Pvc Or Xlpe |
Sheath: |
Pvc |
Port: |
Qingdao Or Shanghai |

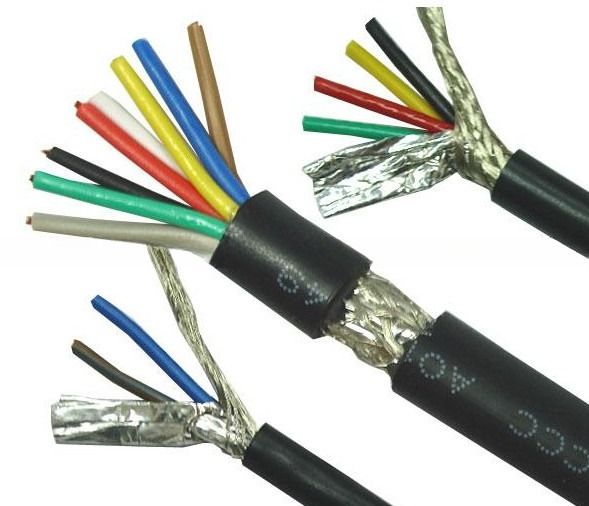

Screened Instrumentation Armoured Cable
1). Standard: the control cable can be produced according to the standard IEC60502(GB9330-1988), and the factory can also manufacture the cable in accordance with other standards.
2). Application: the control cable are suitable for the wiring of electrical controlling equipment and instrument, monitoring and controlling return circuit, electrical protection and measurement in power distribution unit under the circumstance that the rated voltage is up to 450/750V AC
3). Control cable series including:
* KVV: copper conductor, PVC insulated and PVC sheathed control cable
* KVVP: copper conductor, PVC insulated and PVC sheathed, braided copper wire screened control cable
* KVVP2: copper conductor, PVC insulated and PVC sheathed, copper tape screened control cable
* KVV22: copper conductor, PVC insulated and PVC sheathed, steel tape armoured control cable
* KVVR: Flexible copper conductor, PVC insulated and PVC sheathed control cable
* KVVRP: Flexible copper conductor, PVC insulated and PVC sheathed, braid copper wire screened control cable
* KVVP-22: copper conductor, PVC insulated and PVC sheathed, braid copper wire screened, steel tape armoured control cable
* KVVP2-22: copper conductor, PVC insulated and PVC sheathed, copper tape screened, steel tape armoured control cable
| Spec | Rated voltage (V) | Normal area (mm2) | ||||||
| 0.75 | 1.0 | 1.5 | 2.5 | 4 | 6 | 10 | ||
| No. of core | ||||||||
| KVV | 450/750V
0.6/1KV | 2-61 | 2-14 | 2-10 | ||||
| KVVP | 2-10 | |||||||
| KVVP2 | 2-61 | 2-14 | 2-10 | |||||
| KVV22 | 7-61 | 2-61 | 2-14 | 2-10 | ||||
| KVVR | 2-61 | - | ||||||
| KVVRP | 2-61 | 2-48 | - | |||||
| KVVP-22 | 2-61 | 2-14 | 2-10 | |||||
| KVVP2-22 | 2-61 | 2-14 | 2-10 | |||||
