Product Details
Place of Origin: Henan, China
Brand Name: Aobest
Model Number: Cu/ rubber cable
Payment & Shipping Terms
Minimum Order Quantity: 300 kilometers
Price: $1.30/kilometers
Packaging Details: export standard wooden drum or as your request
Insulation Material: |
Rubber |
Type: |
LOW VOLTAGE, Rubber Cable |
Application: |
Construction |
Conductor Material: |
Copper |
Jacket: |
Rubber |
Certificate: |
ISO9001/ISO14001 /OHSAS18001/CCC |
Standard: |
BS IEC ASTM DIN |
Insulation: |
EPR |
Sheath: |
EPR |
Rated Voltage: |
1000v |
Package: |
Wooden Drum |
Insulation Material: |
Rubber |
Type: |
LOW VOLTAGE, Rubber Cable |
Application: |
Construction |
Conductor Material: |
Copper |
Jacket: |
Rubber |
Certificate: |
ISO9001/ISO14001 /OHSAS18001/CCC |
Standard: |
BS IEC ASTM DIN |
Insulation: |
EPR |
Sheath: |
EPR |
Rated Voltage: |
1000v |
Package: |
Wooden Drum |

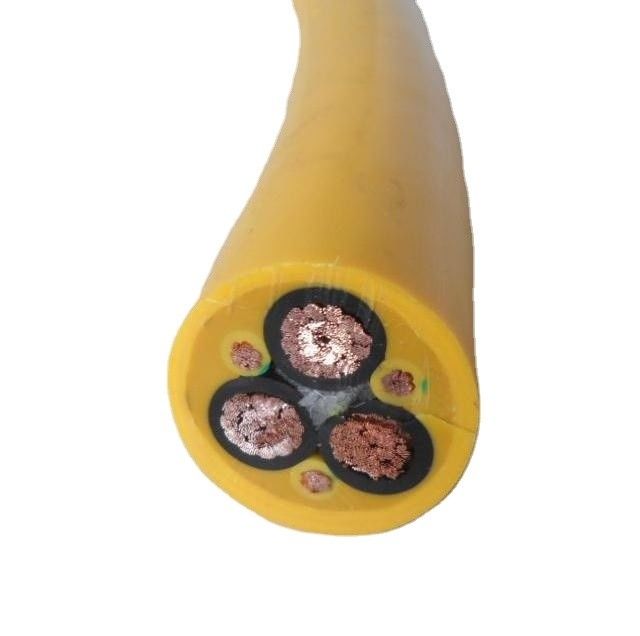

Rubber cable
Copper rubber Insulated power cable including too many types:
1)Voltage: 300V/500V 450/750V 600/1000V
2)Rubber Sheathed Flexible Mine Cable:
a)Rubber Sheathed, Flexible Coal Cutter Cables
b)Screen, Rubber Sheathed, Flexible Coal Cutter Cables
c)Electric Drill Cable For Mine
d)Rubber Sheathed, Moveable And Flexible Mine Cables
3)Number of Cores: 1.2.3.4.5 cores
4)General Rubber Sheathed Flexible Cable
a)Common Rubber Sheathed Flexible Cable
b)Common Chloroprene Cabtyre Flexible Cables.
c)Medium Duty Rubber Sheathed Flexible Cables
d)Heavy Duty Rubber Sheathed Flexible Cables
Used in various movable electric equiment and tools; Connecting various coal cutters and similar equipment under the mine shaft; Driller connection under the mine shaft ;Power connection of various movacable coal cutters under the mine shaft..
Working Conditions:
1. Rated voltage 300/500(YZ type),450V(YC type)
2. The long-term working temperature of conductor should be no longer than 65*C
3. W type cables have weather-proof character and certain grease-proof character and are suitable for outdoor usage and the occasion with greasy dirt.
4. ZR type cables have fire-retardant character.
Type, Description & Application:
| Type | Description | Application |
|
YQ,YQW | Light type soft rubber sheath cable | For lighe type mobile electric devices and tools |
|
YZ,YZW | General type soft rubber sheathe cable | For lighe type mobile electric devices and tools |
|
YC,YCW | Heavy type soft rubber sheath cable | For various mobile electric devices, it could bear strong mechanical force from outside. |
Specification Range:
|
Type |
Rated Voltage |
Core Number | Nominal Cross-section Area |
| YQ,YQW | 300/300 | 2.3 | 0.3~0.5 |
| YZ,YZW | 300/500 | 2.3.4.5.3+1 | 1.5~6 |
|
YC |
450/750 | 1 2 3.4 5 | 1.5~240 1.5~95 1.5~150 1.5~25 |
|
YCW |
450/750 | 2 3 3+1 | 35~95 120~150 2.5~150 |
It suitable for connector of moving equipment in high-temperature environment such as electric generator , metallurgy, chemical industry ect .
Character : Flexible ,high-temperature resistance and corrosion resistance .
Operational Performance :
Long time operational temperature : -60180
We have the most professional manufactory of cables.
We can produce products as your requirement.
