Product Details
Place of Origin: Henan, China
Brand Name: Aobest
Model Number: SHD-GC
Payment & Shipping Terms
Minimum Order Quantity: 500 meters
Price: $0.12 - $1.85/meters
Packaging Details: wooden drum or steel wooden drum or as your special requirement
Supply Ability: 5000 Kilometer/Kilometers per Week
Type: |
Insulated |
Application: |
Industry |
Conductor Material: |
Copper |
Conductor Type: |
Stranded |
Insulation Material: |
PE |
Port: |
Qingdao Or Shanghai |
Type: |
Insulated |
Application: |
Industry |
Conductor Material: |
Copper |
Conductor Type: |
Stranded |
Insulation Material: |
PE |
Port: |
Qingdao Or Shanghai |

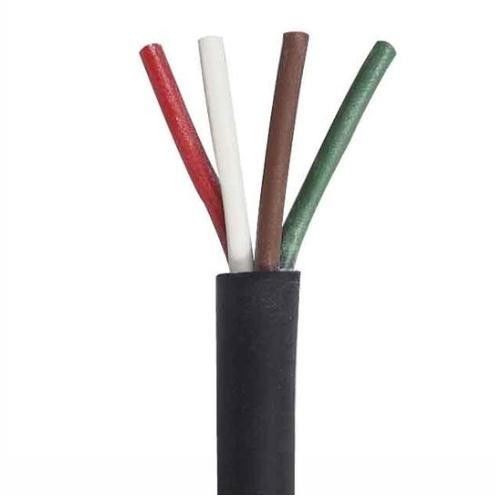

ANACONDA cable SHD-GC
1.PVC insulation thw wire used for home applicance.
2.ISO9001:2008 ,CCC certification
3.RVV cable with 10 years experience
We produce high quality wires, RVV, RVVP, BVV,BVVB,BV,BLV, THW wire.
RVV 300/500V
General application: in domestic areas, for weak mechanical actions, to feed light portable equipment.
BV THW wire:
60227 IEC 01BV,BLV 450/750V
| Nominal section (mm2) | Number/diameter of core (mm) | Maximum outer diameter (mm2) | Reference weight (Kg/km) | Conductor resistance at 20°C ≤(Ω/km) | ||
| copper | aluminum | aluminum | copper | |||
| 1.5(A) | 1/1.38 | 3.3 | 20.3 | ----- | ----- | 12.1 |
| 1.5(B) | 7/0.52 | 3.5 | 21.6 | ----- | ----- | 12.1 |
| 2.5(A) | 1/1.78 | 3.9 | 31.6 | 17 | 11.80 | 7.41 |
| 2.5(B) | 7/0.68 | 4.2 | 34.8 | ----- | ----- | 7.41 |
| 4(A) | 1/2.25 | 4.4 | 47.1 | 22 | 7.39 | 4.61 |
| 4(B) | 7/0.85 | 4.8 | 50.3 | ------ | ----- | 4.61 |
| 6(A) | 1/2.76 | 4.9 | 65 | 29 | 4.91 | 3.08 |
| 6(B) | 7/1.04 | 5.4 | 71.2 | ---- | ---- | 3.08 |
| 10 | 7/1.35 | 7.0 | 119 | 62 | 3.08 | 1.83 |
| 16 | 7/1.70 | 8.0 | 179 | 78 | 1.91 | 1.15 |
| 25 | 7/2.04 | 10.0 | 281 | 118 | 1.20 | 0.727 |
| 35 | 7/2.52 | 11.5 | 381 | 156 | 0.868 | 0.524 |
| 50 | 19/1.78 | 13.0 | 521 | 215 | 0.641 | 0.387 |
| 70 | 19/2.14 | 15.0 | 734 | 282 | 0.443 | 0.268 |
| 95 | 19/2.52 | 17.5 | 962 | 385 | 0.320 | 0.193 |
| 120 | 37/2.03 | 19.0 | 1180 | 431 | 0.253 | 0.153 |
| 150 | 37/2.25 | 21.0 | 1470 | 539 | 0.206 | 0.124 |
| 185 | 37/2.52 | 23.5 | 1810 | 666 | 0.164 | 0.0991 |
| 240 | 61/2.25 | 26.5 | 2350 | 857 | 0.125 | 0.0754 |
We will provide you with High quality and reasonable price wire. welcome your trial order.
