Product Details
Place of Origin: Henan, China
Brand Name: Aobest
Model Number: URD
Payment & Shipping Terms
Minimum Order Quantity: 2000 meters
Price: $2.00/meters
Packaging Details: exported standard wooden drum or as your request
Insulation Material: |
Xlpe |
Type: |
LOW VOLTAGE |
Application: |
Underground |
Conductor Material: |
Aluminum |
Jacket: |
No |
Type: |
URD Burial Secondary 600V Cable |
Insulation Material: |
Xlpe |
Type: |
LOW VOLTAGE |
Application: |
Underground |
Conductor Material: |
Aluminum |
Jacket: |
No |
Type: |
URD Burial Secondary 600V Cable |

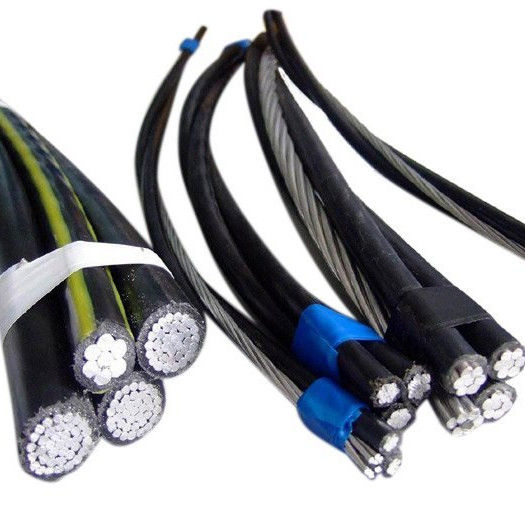

Specification for Aluminium Conductor URD Cable, 2020year hot selling main cable Aluminum Triplex URD Burial Secondary 600V Cable
URD cable
1.Application:
used for secondary distribution and underground service either direct burial or in ducts with fully insulated.
2.Construction:
Concentric strand or compressed 1350-H19 conductor,polythylene or crosslinked polyethylene insulation.
3.URD cable covers mainly 3 types of the service drop cable:Duplex service drop cable.triplex service drop cable,quadruplex service drop
4.Detailed specification,
Secondary UD Quadruplex 600V
Aluminium Conductor Cross-linked polyethylene(XLPE) insulation,600V Three phase with neutral
| Code name | Phase conductor | Neutral | Diameter | Approx. Weight | Allowable Ampacities Raceway (cable in ducts)
| |||||
| Size | Number Of wires | Insulation Thickness | Size | Number Of wires | Insulation Thickness | Single Phase conductor | Complete cable | |||
| AWG or kcmil | mm | AWG | mm | mm | Kg/km | |||||
| QUADRUPLEXED WITH TRIPLE SOLID YELLOW STRIPES NEUTRAL | ||||||||||
| Tulsa | 4 | 7 | 1.52 | 4 | 7 | 1.52 | 8.7 | 21.1 | 385 | 85 |
| Dyke | 2 | 7 | 1.52 | 4 | 7 | 1.52 | 10.2 | 24.7 | 518 | 110 |
| Wittenberg | 2 | 7 | 1.52 | 2 | 7 | 1.52 | 10.2 | 24.7 | 562 | 110 |
| Notre Dame | 1/0 | 19 | 2.03 | 2 | 7 | 1.52 | 13.2 | 32 | 810 | 150 |
| Purdue | 1/0 | 19 | 2.03 | 1/0 | 19 | 2.03 | 13.2 | 32 | 892 | 150 |
| Syracuse | 2/0 | 19 | 2.03 | 1 | 19 | 2.03 | 14.3 | 34.6 | 998 | 165 |
Any inquiry or questions, pls contact me freely. More info. will be offered as your request~~
Email: aobest(at)aobest.cn
