Product Details
Place of Origin: Henan, China
Brand Name: aobest
Model Number: U120BP
Payment & Shipping Terms
Minimum Order Quantity: 1000 pieces
Price: $8.60/pieces
Packaging Details: packing:export standard by wooded drum or as your requ
Voltage: |
2OKV |
Current: |
20A |
Product Name: |
Toughened Glass Insulator |
Type: |
U120BP |
Packing: |
Wood Case |
Standard: |
GOST |
Delivery Time: |
15days |
Moq: |
1000 |
Color: |
GREEN |
Voltage: |
2OKV |
Current: |
20A |
Product Name: |
Toughened Glass Insulator |
Type: |
U120BP |
Packing: |
Wood Case |
Standard: |
GOST |
Delivery Time: |
15days |
Moq: |
1000 |
Color: |
GREEN |

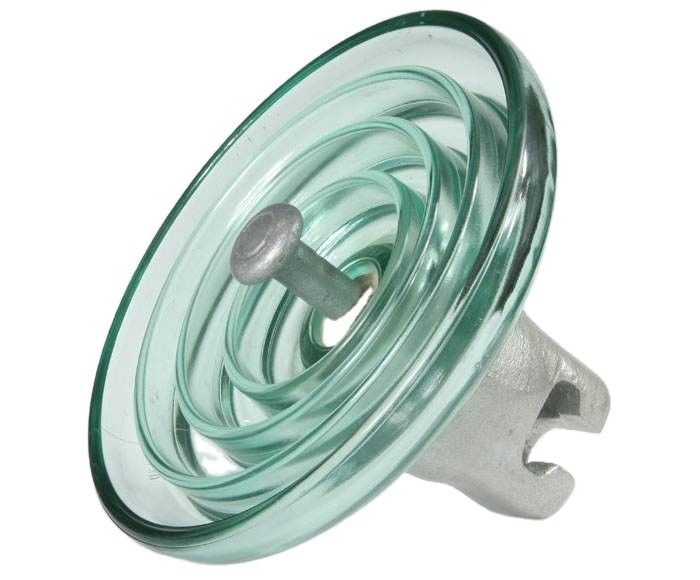

toughened glass insulator U120BP for Kazakhstan, we produce different type toughened glass insulator U120BP, U70 toughened glass insulator, PS-70 glass insulator, PS-120 glass insulator.
welcome your contact! Email: aobest(at)aobest.cn
Whatsapp:+86 13310857673
Wechat: +86 13316918635
| LXAP-160/240 |
| GENERAL TYPE | U160BP/146M | U160BP/155M | U210BP/127M | U120BP/146M |
| TYPE | LXAP1-160 | LXAP-160 | LXAP-210 | LXAP-240 |
| ( mm ) DIAMETER D | 420 | 420 | 420 | 420 |
| ( mm )SPACING H | 146 | 155 | 170 | 170 |
| ( mm )CREEPAGE L | 380 | 380 | 380 | 380 |
| ( mm ) | 20 | 20 | 20 | 20 |
| ( kN )MECHANICAL FALING LOAD | 160 | 160 | 160 | 160 |
| ( kN )TENSION LOAD TEST | 80 | 80 | 80 | 80 |
| ( kV )POWER FREQUENCY WITHSTAND VOLTAGE(WET) | 50 | 50 | 50 | 50 |
| ( kV )LIGHTENING IMPULSE WITHSTAND VOLTAGE LIGHTENING IMPULSE WITHSTAND VOLTAGE | 95 | 95 | 95 | 95 |
| ( P.U ) IMPULSE PUNCTURE VOLTAGE | 2.8 | 2.8 | 2.8 | 2.8 |
| ( kV )POWER FREQUENCY PUNCTURE VOLTAGE | * 130 | * 130 | * 130 | * 130 |
| ( µV ) ( 10kV,1MHz) | 50 | 50 | 50 | 50 |
| ( kV )ELECTRIC IRON VISUAL TEST (CAP/PIN) | 18/22 | 18/22 | 18/22 | 18/22 |
| POWER FREQUENCY ELECTRIC ARC VOLTAGE POWER FREQUENCY ELECTRIC ARC VOLTAGE | 0.12s/20kA | 0.12s/20kA | 0.12s/20kA | 0.12s/20kA |
| ( kg )WEIGHT PER UNIT | 7.2 | 7.2 | 7.3 | 7.5 |
