Product Details
Place of Origin: Henan, China
Brand Name: Aobest
Certification: CCC, ISO9001
Model Number: cu/pvc/pvc
Payment & Shipping Terms
Minimum Order Quantity: 1000 meters
Price: $1.00 - $10.00/meters
Packaging Details: export standard by steel-wooden drum
Supply Ability: 50 Kilometer/Kilometers per Month
Application: |
Industrial |
Conductor Material: |
Copper |
Jacket: |
PVC |
Insulation Material: |
Xlpe |
Product Name: |
50mm2 Pvc Insulated Flame Resistant Zr-kvv Power Control Cable |
Color: |
Black |
Conductor: |
Copper Core |
Insulation: |
Xlpe |
Standard: |
ASTM |
Voltage: |
0.6/1kv |
MOQ: |
1000meters |
Production Time: |
10days |
Delivery Time: |
15days |
Port: |
Shanghai |
Application: |
Industrial |
Conductor Material: |
Copper |
Jacket: |
PVC |
Insulation Material: |
Xlpe |
Product Name: |
50mm2 Pvc Insulated Flame Resistant Zr-kvv Power Control Cable |
Color: |
Black |
Conductor: |
Copper Core |
Insulation: |
Xlpe |
Standard: |
ASTM |
Voltage: |
0.6/1kv |
MOQ: |
1000meters |
Production Time: |
10days |
Delivery Time: |
15days |
Port: |
Shanghai |

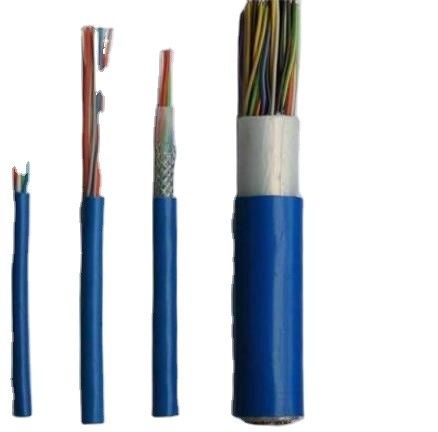

CY cable, SY cable, YY cable, and LiYCY & LiYY cables designed for a wide range of industrial process automation applications, including signal transmission, measurement, control and regulation About Us:
Zhengzhou Aobest Electronic Technology Co., Ltd. is a professional company, located in Zhengzhou, China. We provide power cables and wires.
Our main products: High and low voltage XLPE insulated Cables, PVC insulated cables, steel wire armored cables, steel tape armored cables, ABC cables, Overhead insulated cables, AAC, AAAC & ACSR cables, Copper wires, Galvanized steel wire strands, PVC insulated wires and flexible wires, Rubber insulated cables, underground cables, control cables, aluminum sheets, etc.
FLEXIBLE PVC CONTROL CABLE
1. Standard
The control cable can be produced according to the standard GB9330-1988, and the factory can also manufacture the cables in accordance with other standards.
2. Scope of Application
The control cable are suitable for the wiring of electrical controlling equipments and instruments, monitoring and controlling return circuit, electrical protection and measurement in power distribution unit under the circumstance that the rated voltage is up to 450/750V AC.
3. Service Conditions
(1)The long-time working temperature of conductor of PVC insulated control cable is 70°C
The long-time working temperature of conductor of XLPE insulated control cable is 90°C
(2) The temperature for laying the cables can not be lower than 0°C. Permissible bending radius(r): Unarmoured cable: R≥ 6D; (D: Outer diameter of the cable); Armoured or copper-tape screened cable: R≥ 12D; Shielded flexible cable: R≥ 6D
PVC Insulated Control Cable Parameter
| Type | Name | Section Area(mm2) | No. of Core | Application Site |
| KVV | Copper Conductor,PVC Insulated and Sheathed Control Cable | 0.75 1.0 1.5 2.5 | 2-16 | Permanent installation indoors,in cable ditches or pipes |
| 4 6 | 2-14 | |||
| 10 | 2-10 | |||
| KVVP | Copper Conductor,PVC Insulated and Sheathed,Braiding Shielded Control Cable | 0.75 1.0 1.5 2.5 | 2-61 | Permanent installation indoors,in cable ditches or pipes where shielding is required |
| 4 6 | 2-14 | |||
| 10 | 2-10 | |||
| KVVP2 | Copper Conductor,PVC Insulated and Sheathed,Copper-tape Screened Control Cable | 0.75 1.0 1.5 2.5 | 4-10 | Permanent installation indoors,in cable ditches or pipes where shielding is required |
| 4 6 | 7-61 | |||
| 10 | 4-10 | |||
| KVV22 | Copper Conductor,PVC Insulated and Sheathed,Steel tape Armored Control Cable | 0.75 1.0 1.5 2.5 | 7-61 | Permanent installation indoors,in cable ditches,Be able to withstand stronger external mechanical force |
| 4 6 | 4-14 | |||
| 10 | 4-14 | |||
| KVVR | Copper Conductor,PVC Insulated and Sheathed,Flexible Control Cable | 0.5-2.5 | 4-61 | Installation indoors where flexibility and movability are required |
| KVVRP | Copper Conductor,PVC Insulated and Sheathed,Braiding shielded Flexible Control Cable | 0.5 0.75 1.0 | 4-61 | Installation indoors where flexibility shielding and movability are required |
1:standard export wooden drum/steel wooden drum
2: upon your request
1) Printing your logo on the cable.
2) Printing your logo on the pull box, wooden drum according to your design
3) Any your idea on cable, packing box are available.
1) All products will have been strictly Quality Checked in house before packing.
2) All products will be well packed before shipping.
