Product Details
Place of Origin: Henan, China
Brand Name: aobest
Model Number: insulator
Payment & Shipping Terms
Minimum Order Quantity: 5000 pieces
Price: $6.60/pieces 5000-9999 pieces
Packaging Details: carton or bamboo sheet.
Type: |
Insulator |
Material: |
Glass |
Application: |
High Voltage |
Rated Voltage: |
100KV |
Tensile Strength: |
60KN |
Diameter: |
255mm |
MECHANICAL FALING LOAD: |
120KN |
Type: |
Insulator |
Material: |
Glass |
Application: |
High Voltage |
Rated Voltage: |
100KV |
Tensile Strength: |
60KN |
Diameter: |
255mm |
MECHANICAL FALING LOAD: |
120KN |

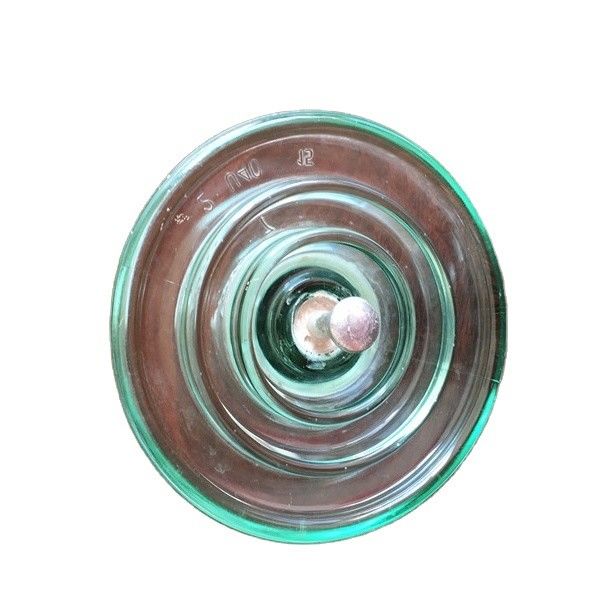

LXP-120 standard suspension insulator
Welcome your contact.
Email: aobest(at)aobest.cn
WhatsApp:+86 13310857673
Wechat:+86 13316918635
| LXP-120 insulator specification |
| GENERAL TYPE | U120B/146 | U120B/127 |
| TYPE OF RUITAI | LXP-120 | LXP2-120 |
| ( mm ) DIAMETER D | 255 | 255 |
| ( mm )SPACING H | 146 | 127 |
| ( mm ) CREEPAGE L | 320 | 320 |
| ( mm ) | 16 | 16 |
| ( kN )MECHANICAL FALING LOAD | 120 | 120 |
| ( kN ) TENSION LOAD TEST | 60 | 60 |
| ( kV ) POWER FREQUENCY WITHSTAND VOLTAGE(WET) | 40 | 40 |
| ( kV ) LIGHTENING IMPULSE WITHSTAND VOLTAGE LIGHTENING IMPULSE WITHSTAND VOLTAGE | 100 | 100 |
| ( P.U )IMPULSE PUNCTURE VOLTAGE | 2.8 | 2.8 |
| ( kV ) POWER FREQUENCY PUNCTURE VOLTAGE | 130 | 130 |
| ( µV ) ( 10kV,1MHz) | 50 | 50 |
| ( kV ) ELECTRIC IRON VISUAL TEST (CAP/PIN) | 18/22 | 18/22 |
| POWER FREQUENCY ELECTRIC ARC VOLTAGE POWER FREQUENCY ELECTRIC ARC VOLTAGE | 0.12s/20kA | 0.12s/20kA |
| ( kg )NET WEIGHT PER UNIT | 4 | 4 |
The LXP-120 insuator package:
