Product Details
Place of Origin: Henan, China
Brand Name: AOBEST
Model Number: PP-Y wire
Payment & Shipping Terms
Minimum Order Quantity: 100 meters
Price: $1.20/meters
Packaging Details: 100meter per coil.
Insulation Material: |
PVC |
Type: |
LOW VOLTAGE |
Application: |
Industrial |
Conductor Material: |
Copper |
Jacket: |
PVC |
Voltage: |
750v |
Product Name: |
Electric Cable |
Certificate: |
ISO9001/ISO14001 /OHSAS18001/CCC |
Standard: |
IEC60502 |
Conductor: |
Copper Core |
Insulation: |
XLPE PE PVC |
Sheath: |
Flame Retardant PVC |
Package: |
Wooden Drum |
Insulation Material: |
PVC |
Type: |
LOW VOLTAGE |
Application: |
Industrial |
Conductor Material: |
Copper |
Jacket: |
PVC |
Voltage: |
750v |
Product Name: |
Electric Cable |
Certificate: |
ISO9001/ISO14001 /OHSAS18001/CCC |
Standard: |
IEC60502 |
Conductor: |
Copper Core |
Insulation: |
XLPE PE PVC |
Sheath: |
Flame Retardant PVC |
Package: |
Wooden Drum |

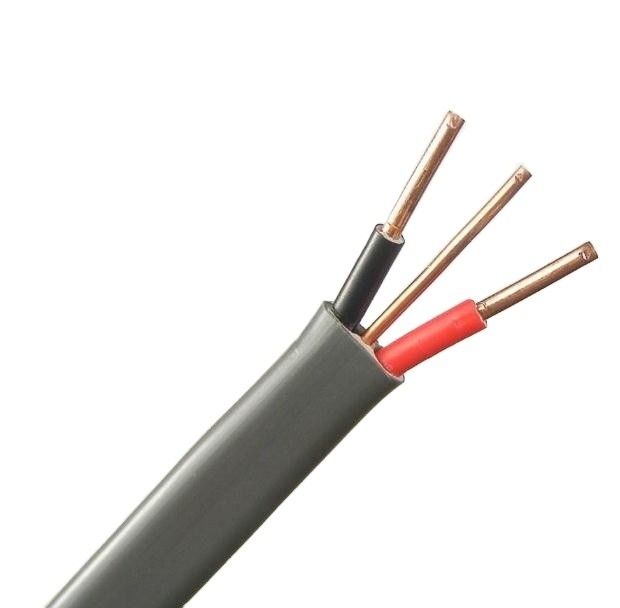

We provide PP-Y wire cable(NYM-J ) cable in high quality,
Product details: Copper conductor, PVC insulation and pvc sheath.
Packing details: 100meter per coil.
We ship by FCL, 40containers per month to oversea market.
10days delivery time for one 20FT container
Welcome to inquiry us if you have requirement!
| Nominal sectionmm2 | Structure of cores Core×no./dia(mm) | Max.outer dia (mm) | Cond resistance At 20Ω/km | Min.Insulation resistance at 70Ω·km | |
| copper | aluminum | ||||
| 2×1.5A | 2×1/1.38 | 10.0 | 12.1 |
| 0.011 |
| 2×1.5B | 2×7/0.52 | 10.5 | 12.1 |
| 0.010 |
| 2×2.5(A) | 2×1/1.78 | 11.5 | 7.41 | 12.1 | 0.010 |
| 2×2.5(B) | 2×7/0.68 | 12.0 | 7.41 |
| 0.009 |
| 2×4(A) | 2×1/2.25 | 12.5 | 4.61 | 7.41 | 0.0085 |
| 2×4(B) | 2×7/0.85 | 13.0 | 4.61 |
| 0.0077 |
| 2×6(A) | 2×1/2.76 | 13.5 | 3.08 | 4.61 | 0.0070 |
| 2×6(B) | 2×7/1.04 | 14.0 | 3.08 |
| 0.0065 |
| 2×10 | 2×7/1.35 | 17.5 | 1.83 | 3.08 | 0.0065 |
| 3×1.5(A) | 3×1/1.38 | 10.5 | 12.1 |
| 0.011 |
| 3×1.5(B) | 3×7/0.52 | 11.0 | 12.1 |
| 0.010 |
| 3×2.5(A) | 3×1/1.78 | 12.0 | 7.41 | 12.1 | 0.010 |
| 3×2.5(B) | 3×7/0.68 | 12.5 | 7.41 |
| 0.009 |
| 3×4(A) | 3×1/2.25 | 13.0 | 4.61 | 7.41 | 0.0085 |
| 3×4(B) | 3×7/0.85 | 13.5 | 4.61 |
| 0.0077 |
| 3×6(A) | 3×1/2.76 | 14.5 | 3.08 | 4.61 | 0.0070 |
| 3×6(B) | 3×7/1.04 | 15.5 | 3.08 |
| 0.0065 |
| 3×10 | 3×7/1.35 | 19.0 | 1.83 | 3.08 | 0.0065 |
...
